Logitech Rally Mounting Kit

The Logitech Rally Mounting Kit is a wall and ceiling mount accessory kit for Logitech Rally conferencing camera systems. Cable-management raceway, wall-mount and ceiling-mount brackets, and the cabling needed to deploy a Rally setup in a permanent meeting-room install — the accessory IT teams need when commissioning a Rally room. It pairs with Rally and Rally Plus systems already deployed across Pakistan’s enterprise meeting rooms. Available exclusively from Logitech Pakistan as the officially authorized Logitech Pakistan online partner, every unit ships factory-sealed from our warehouses across Pakistan with full 1-year manufacturer warranty and free nationwide delivery.

A SLEEK, SECURE, FLEXIBLE MOUNTING SYSTEM

Achieve a streamlined installation of each Rally system component with included brackets and mounting hardware. Camera bracket provides a secure, stable wall mount above or below the display, or cleverly inverts for near-ceiling installations. Mount speakers directly to the wall with low-profile brackets. Position hubs on a wall or beneath a table with ventilated hardware, then secure connections with the cable retention brackets for a professional appearance.

EXPLORE KEY FEATURE

INVERTIBLE CAMERA BRACKET

The camera bracket provides flexibility to mount the camera on a wall directly above or below the display for a natural line of sight and eye contact with remote participants. For larger meeting spaces, the bracket can be inverted to position the camera near the ceiling for a more expansive view. A tripod screw and three-point pin system provides stability and helps keep the camera steady when the lens is in motion.

LOW-PROFILE SPEAKER BRACKETS

Each accessory in the Rally Mounting Kit is tailored to the system component it supports. The two brackets that mount the Rally speakers on either side of the display create a sleek “floating” appearance while enabling the speakers themselves to deliver their full acoustic potential. The result: lifelike conversational sound that helps bring people together even as the enabling technology fades unobtrusively into the background.

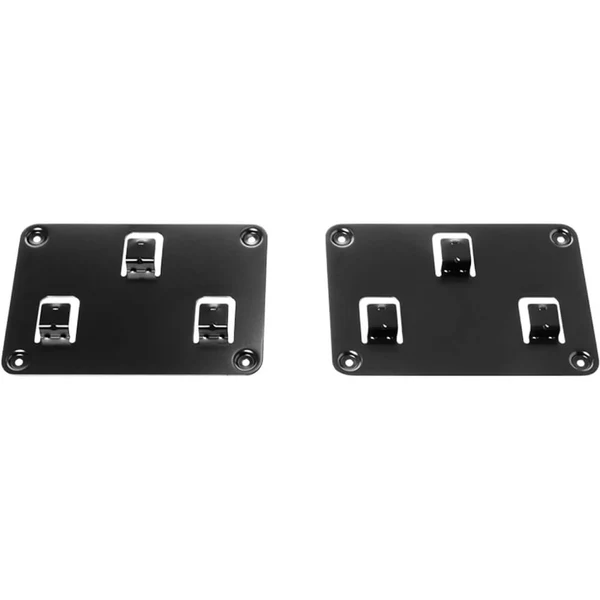

VENTILATED BRACKETS FOR DISPLAY HUB AND TABLE HUB

Two ventilated hub brackets provide versatile mounting options to position the Display Hub and Table Hub on a wall or beneath a table. The brackets are engineered with elevated standoffs to ensure ample air circulation for reliable cooling.

CABLE RETENTION BRACKETS

Guard against accidental disconnections and related trouble tickets while keeping cables neat and tidy.  Each two-piece bracket mounts near the Display Hub and Table Hub to keep the power, A/V, and data cables securely plugged in.

Specs & Details

Dimensions

Speaker Bracket

• Height: 1.42 in (36 mm)
• Width: 10.47 in (266 mm)
• Depth: 0.31 in (8 mm)

Camera Bracket

• Height: 2.48 in (63 mm)
• Width: 4.29 in (109 mm)
• Depth: 6.54 in (166 mm)

Table Hub Bracket

• Height: 0.47 in (12 mm)
• Width: 6.46 in (164 mm)
• Depth: 4.53 in (115 mm)

Display Hub Bracket

• Height: 0.47 in (12 mm)
• Width: 6.46 in (164 mm)
• Depth: 4.53 in (115 mm)

Cable Retainer

• Height: 0.91 in (23 mm)
• Width: 6.46 in (164 mm)
• Depth: 1.50 in (38 mm)

Compatibility

Logitech Rally or Logitech Rally PlusNote: Rally Mounting Kit is designed for Logitech Rally systems only. A different mounting system is included with the standalone USB Rally Camera.

In the Box

• Logitech Rally Mounting Kit
• Speaker Bracket (2)
• Camera Bracket
• Table Hub Bracket
• Display Hub Bracket
• Cable Retainer (2)
• Fasteners Documentation
